Hydraulic manifolds and cylinder parts, machined to your drawing

Blocks, cavities, end caps and fittings in steel, stainless, aluminium and cast iron

Hydraulic parts machining for system and cylinder builders — from prototypes to repeat series. Blocks are milled and drilled on 3- and 5-axis machines with deep holes up to 350–400 mm, every channel intersection is deburred in-house, and flushing, pressure testing and plating are arranged on request. For builders without their own machine shop, or whose shop is fully booked.

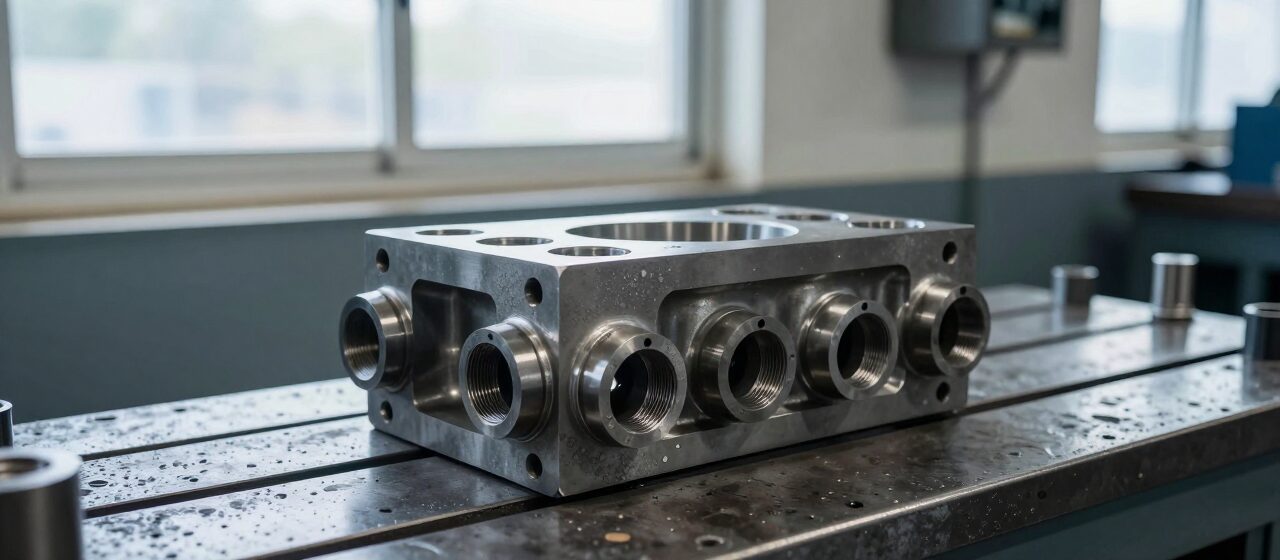

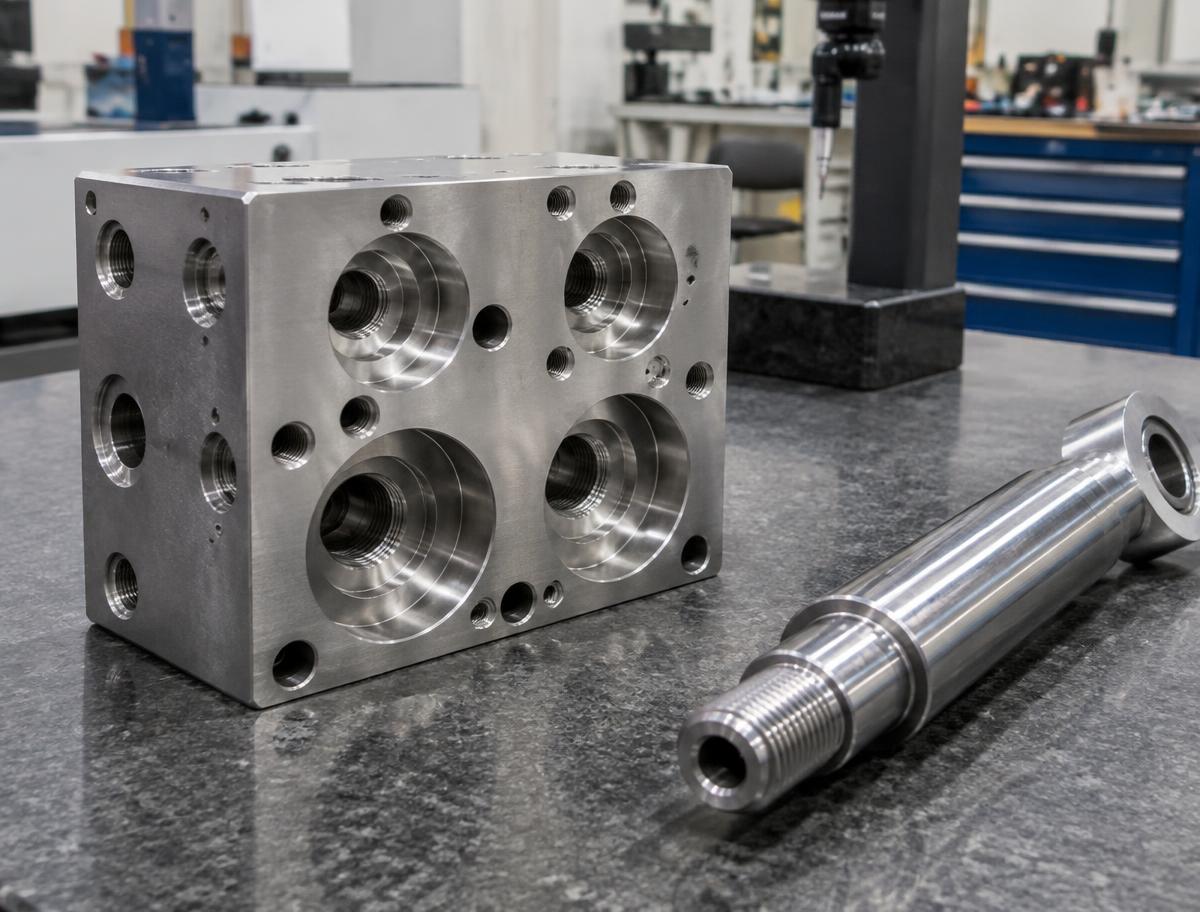

3D model of a CNC-machined hydraulic manifold block
What we make

Typical hydraulic parts we make

Valve & cartridge cavities

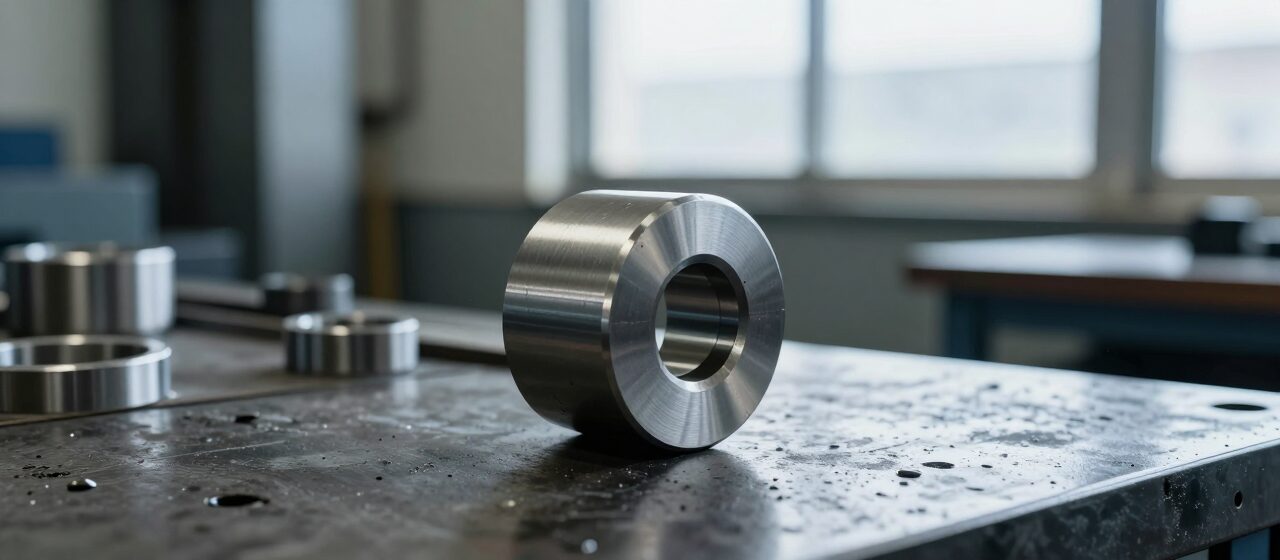

Cylinder heads & end caps

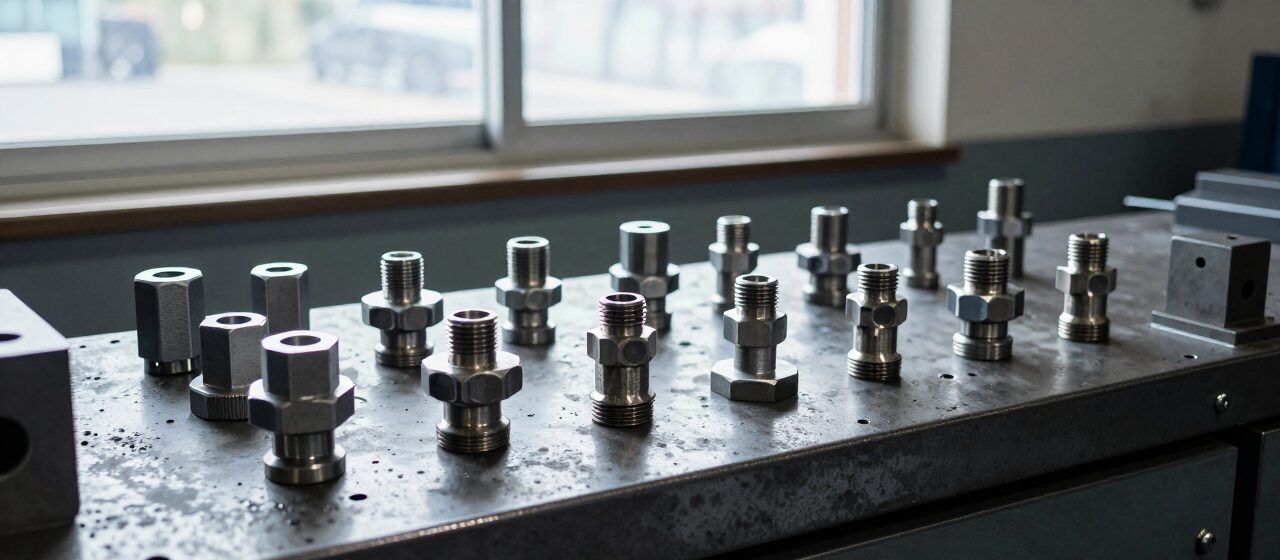

Turned hydraulic fitting and square flange

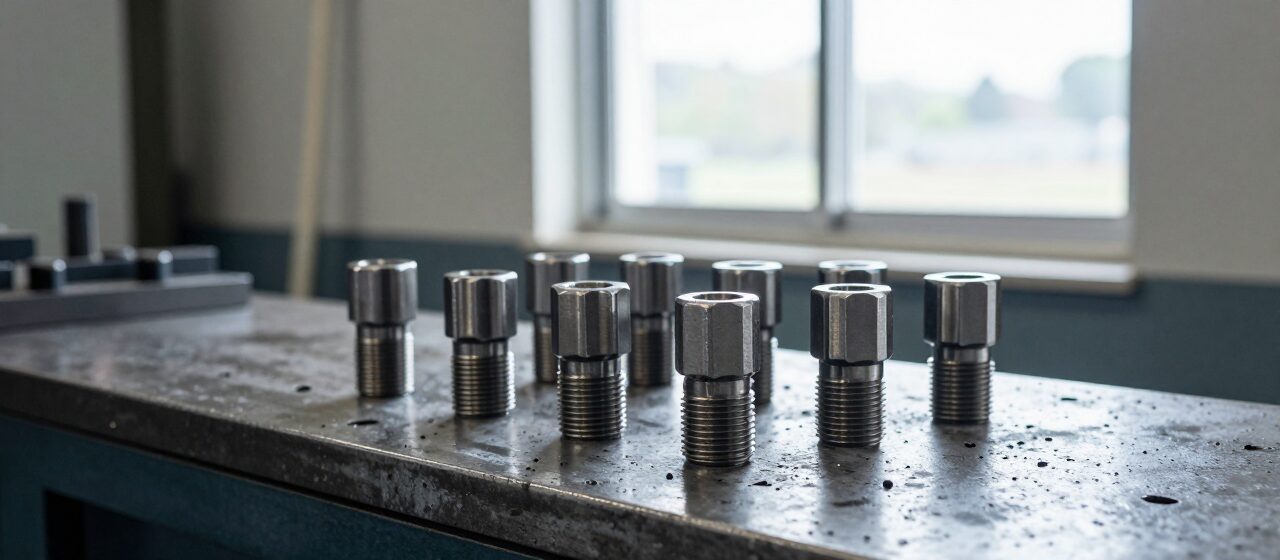

Fittings & adapters

Flanges & bushings

Materials

Grades we use in hydraulics

Steel S355J2, C45Alloy steel 42CrMo4, 34CrNiMo6Free-cutting steel 11SMnPb30Stainless steel 1.4301, 1.4404Aluminium 6082Ductile and grey cast iron

Only certified material, 3.1 certificates on request. Don’t see your grade? Attach your spec to the quote request.

Specifications

Size, tolerances & volumes

Size & drilling

Machining up to 1525 × 762 × 625 mm; 5-axis blocks up to Ø700 × 500 mm. Deep-hole drilling to 350–400 mm.

Tolerances

Bores and sealing faces to your drawing — down to ±0.01 mm milled and ±0.005 mm turned on critical dimensions.

Volumes & testing

Prototypes to medium and large series; programs and fixtures kept for repeat orders. Flushing on request, pressure testing and plating through partners.

Hydraulic parts machining: common questions

Straight answers on tolerances, volumes and quoting. Don’t see your question? Send it with your drawing.

Deep-hole drilling to 350–400 mm. Every channel intersection is deburred in-house and blocks are flushed on request; pressure testing and plating are arranged through partners.

To your drawing — down to ±0.005 mm turned and ±0.01 mm milled on critical dimensions, plastics ±0.02–0.05 mm.

Prototypes, medium and large series. Programs and fixtures are kept, so a repeat order runs the same way as the first batch.

Within 2 working days. Upload STEP, DXF or PDF — an engineer replies with a price, lead time and notes on anything that drives cost. NDA on request.

Need hydraulic parts machining? Get a price in 2 working days.

Upload STEP, DXF or PDF — an engineer replies with a price, lead time and notes on anything that drives cost. NDA on request.
